The 8-Point Grid System — Spacing, Typography, and Breakpoints Explained

Problem — Why Interfaces Feel Inconsistent

Many websites don’t look bad.

They just don’t feel right.

Spacing feels inconsistent. Text sizes feel arbitrary. Layouts break oddly between screen sizes.

Users can’t explain it — but they sense it.

That friction almost always comes from the same root issue: every dimension on the page — spacing, type size, and the breakpoints that reflow the layout — was chosen separately, by eye, with no shared logic tying them together.

The fix is a single mathematical scale, applied consistently across all three.

What Is the 8-Point Grid System?

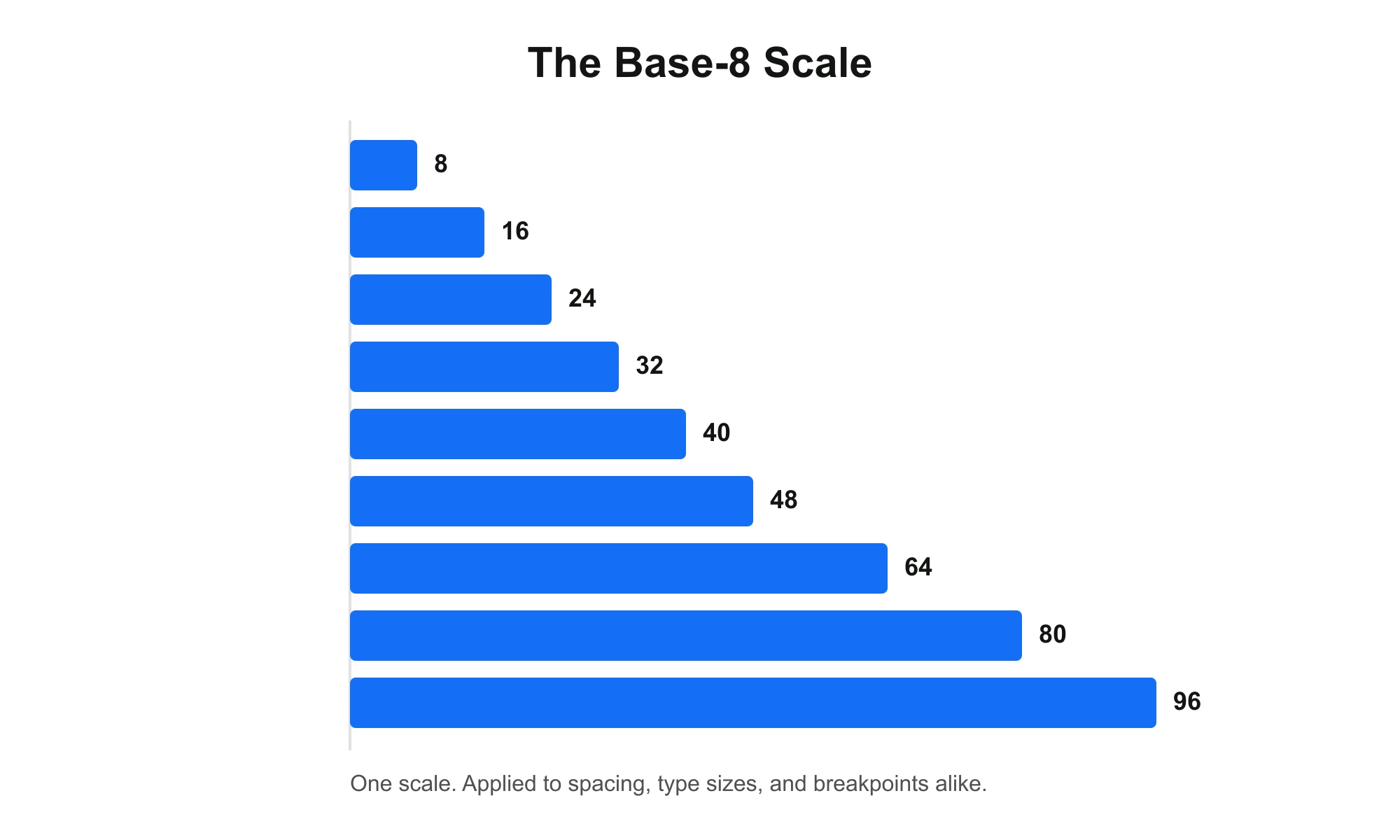

The 8-point grid system is a design methodology that sizes and spaces every UI element — margins, padding, gaps, type sizes, and breakpoints — using multiples of 8. Instead of picking values by eye, every dimension is chosen from one shared scale: 8, 16, 24, 32, 40, 48, 64, 80, 96, and so on.

It is not just a spacing convention. Applied properly, the same base unit governs three layers of a design system at once: layout rhythm, typography, and responsive behavior.

Why 8?

Most popular screen resolutions divide evenly by 8 on at least one axis, which keeps layouts crisp across standard device pixel ratios without half-pixel rendering issues.

8 also divides cleanly into both 2 and 4, which matters in practice: most 8-point systems pair an 8px grid for layout with a finer 4px sub-grid reserved for text and small details, so line-height and baseline alignment stay precise without breaking the larger rhythm.

There is also a simpler, practical reason: fewer choices. Restricting every dimension to one scale removes the vast majority of arbitrary spacing decisions a team would otherwise make one at a time — which is faster for designers and easier for developers to implement exactly as designed.

Who Actually Uses This

This isn’t a niche technique — it’s the default in most major design systems in production today:

• Google’s Material Design — the system behind Gmail, Google Drive, and Google Calendar — builds its spacing and layout guidance around this scale.
• IBM’s Carbon Design System — describes its 8px unit as the geometric foundation running through typography, grid columns, icons, and illustrations alike.
• Shopify’s Polaris — uses a closely related 4px base scale, the finer-grained cousin of the same idea, for the same reasons.
• Apple’s Human Interface Guidelines — reference similar spacing logic, though enforced less strictly than in Material or Carbon.
• Atlassian’s design system — documents its own structured spacing scale built on the same principle.

The pattern across all of them is the same: pick one small base unit, and derive every spacing and sizing decision from it instead of inventing a new number every time.

Chapter 1: Spacing & Layout Rhythm

Spacing is the most common entry point into this system, and the easiest to feel the difference from.

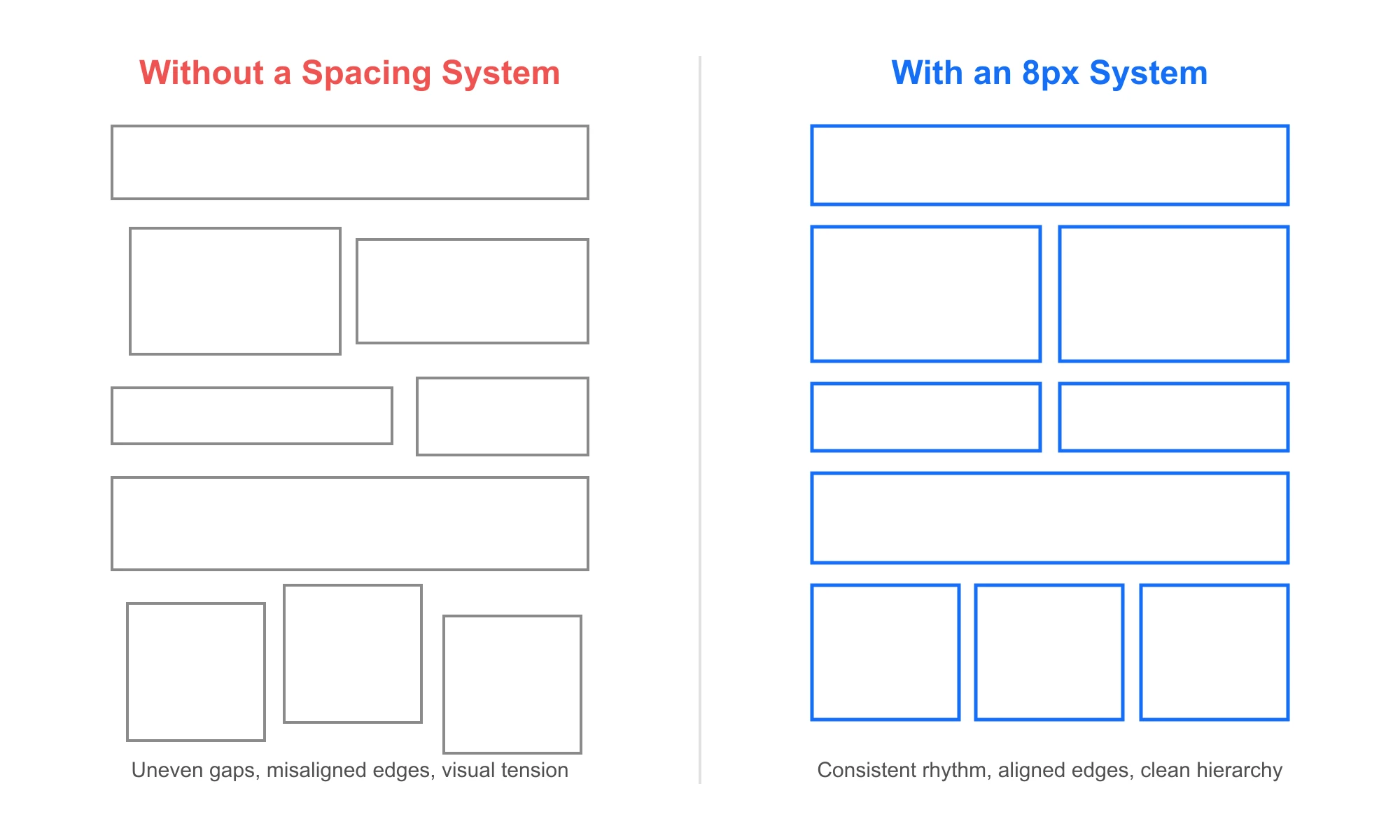

Designers often choose spacing by eye — a 13px margin here, a 22px gap there, a 37px section break somewhere else. Over time this produces inconsistent rhythm, bloated CSS, layout drift, and unpredictable responsiveness. It isn’t a design failure so much as a systems failure: nothing was tying the numbers together.

The fix: every spacing value — margin, padding, gap — is chosen from the same 8, 16, 24, 32… scale. No exceptions, no arbitrary values.

Example Implementation

In code, this is implemented as spacing tokens rather than hand-typed values:

:root {
  --space-1: 8px;
  --space-2: 16px;
  --space-3: 24px;
  --space-4: 32px;
  --space-5: 40px;
  --space-6: 48px;
  --space-8: 64px;
  --space-10: 80px;
}

Developers choose a token instead of a custom number. Spacing becomes a system variable, not a design guess — which means faster development, fewer overrides, and a cleaner codebase.

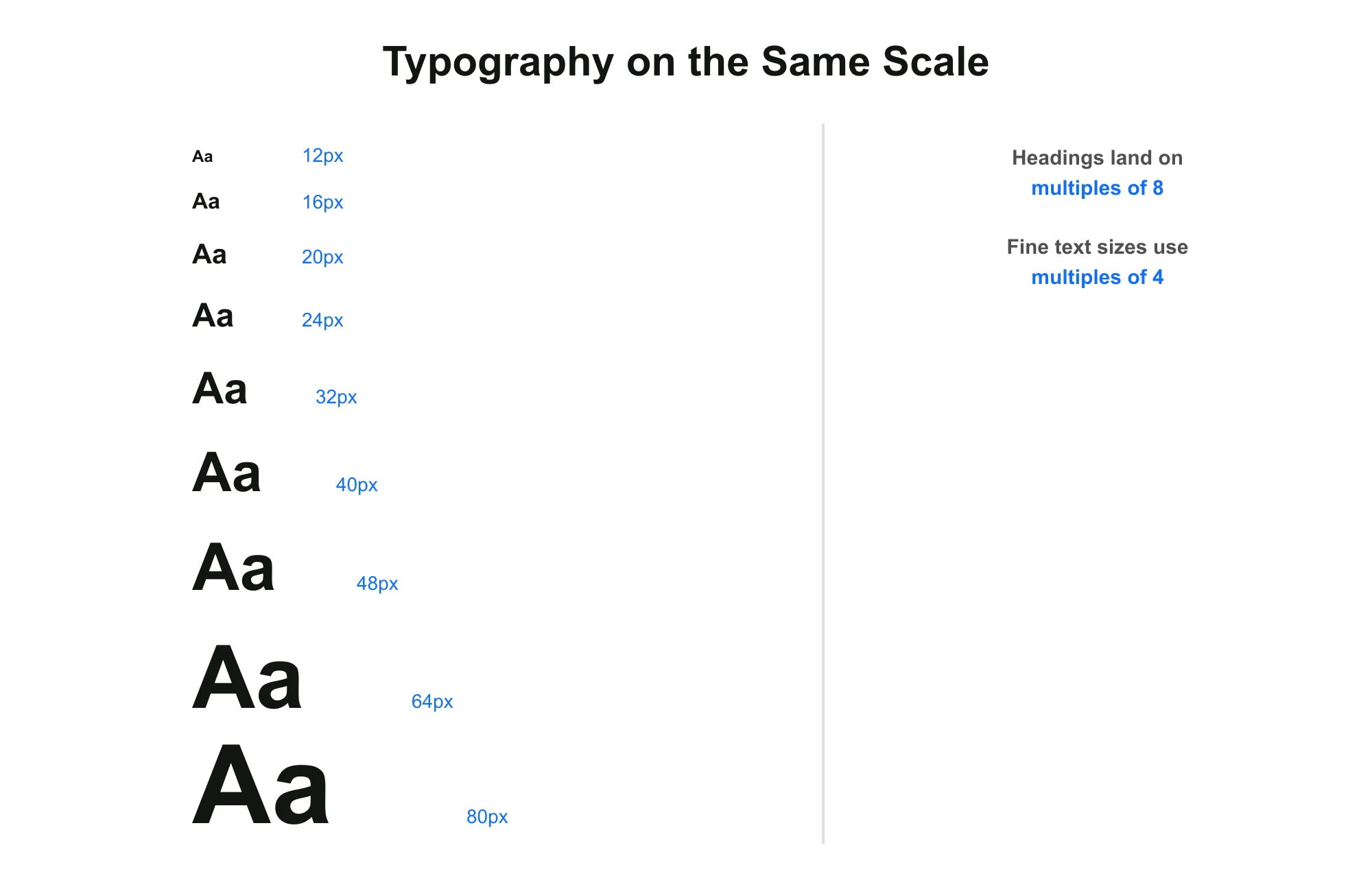

Chapter 2: Typography on the Same Scale

Type sizes are usually the second casualty of arbitrary decisions — a 15px body size here, a 23px heading there, with no relationship between them.

Under the 8-point system, heading sizes land on multiples of 8 (16, 24, 32, 40, 48, 64px), while smaller and finer text sizes are allowed to use the 4px sub-grid (12, 20px) — preserving legibility at small sizes without breaking the larger rhythm.

Line-height follows the same logic: kept on the 4px sub-grid so text baselines still align to the larger 8px layout grid, even though the type scale itself needs finer steps than layout spacing does.

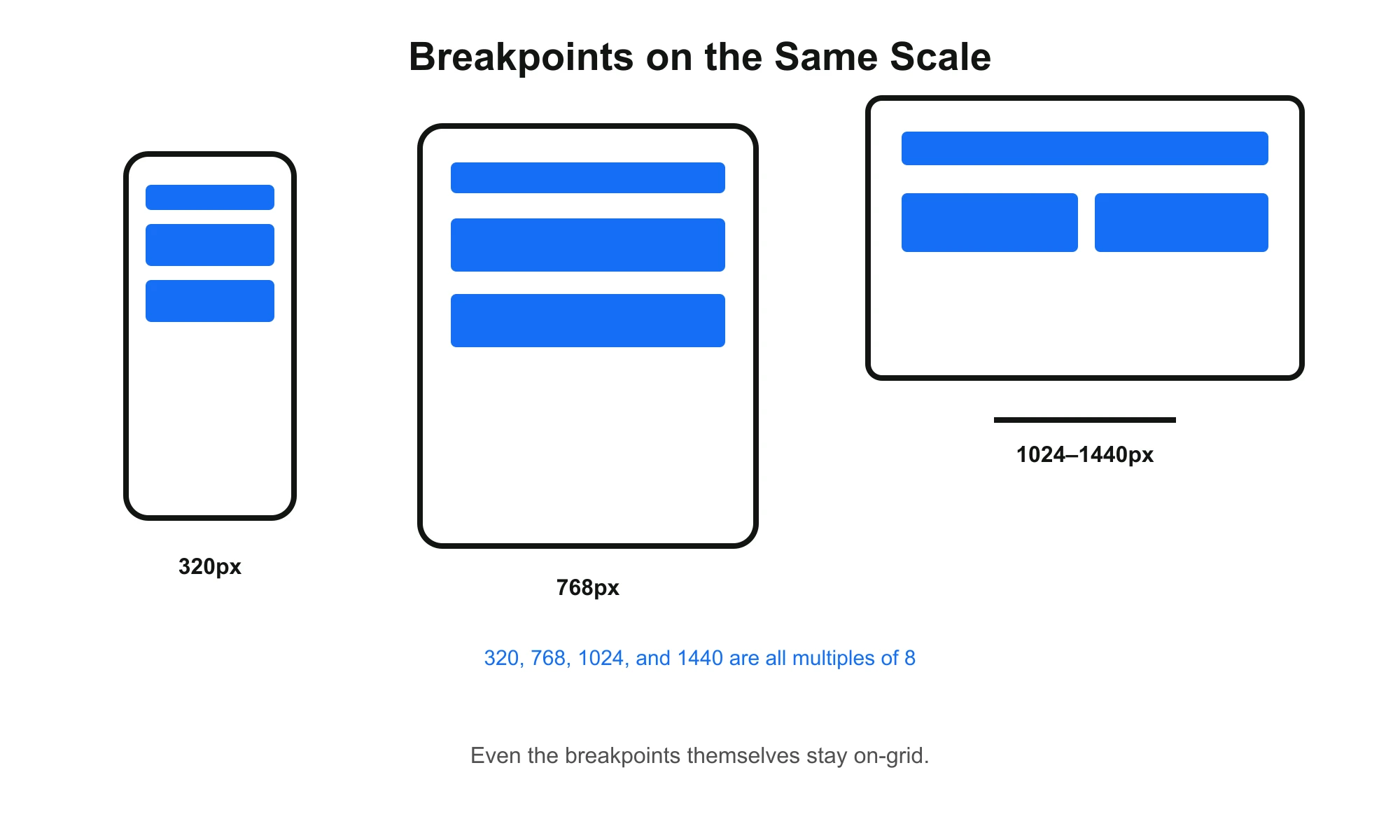

Chapter 3: Responsive Breakpoints

The least obvious application: the breakpoints themselves — the widths at which a layout reflows for mobile, tablet, and desktop — are usually chosen on the same grid-friendly values. 320px, 768px, 1024px, and 1440px are all multiples of 8.

And because spacing values follow a consistent ratio, scaling a layout across breakpoints becomes mathematical rather than manual:

Device	Section Spacing
Mobile	48–64px
Tablet	64–80px
Desktop	80–96px

No redesign required at each breakpoint — only scale adjustment.

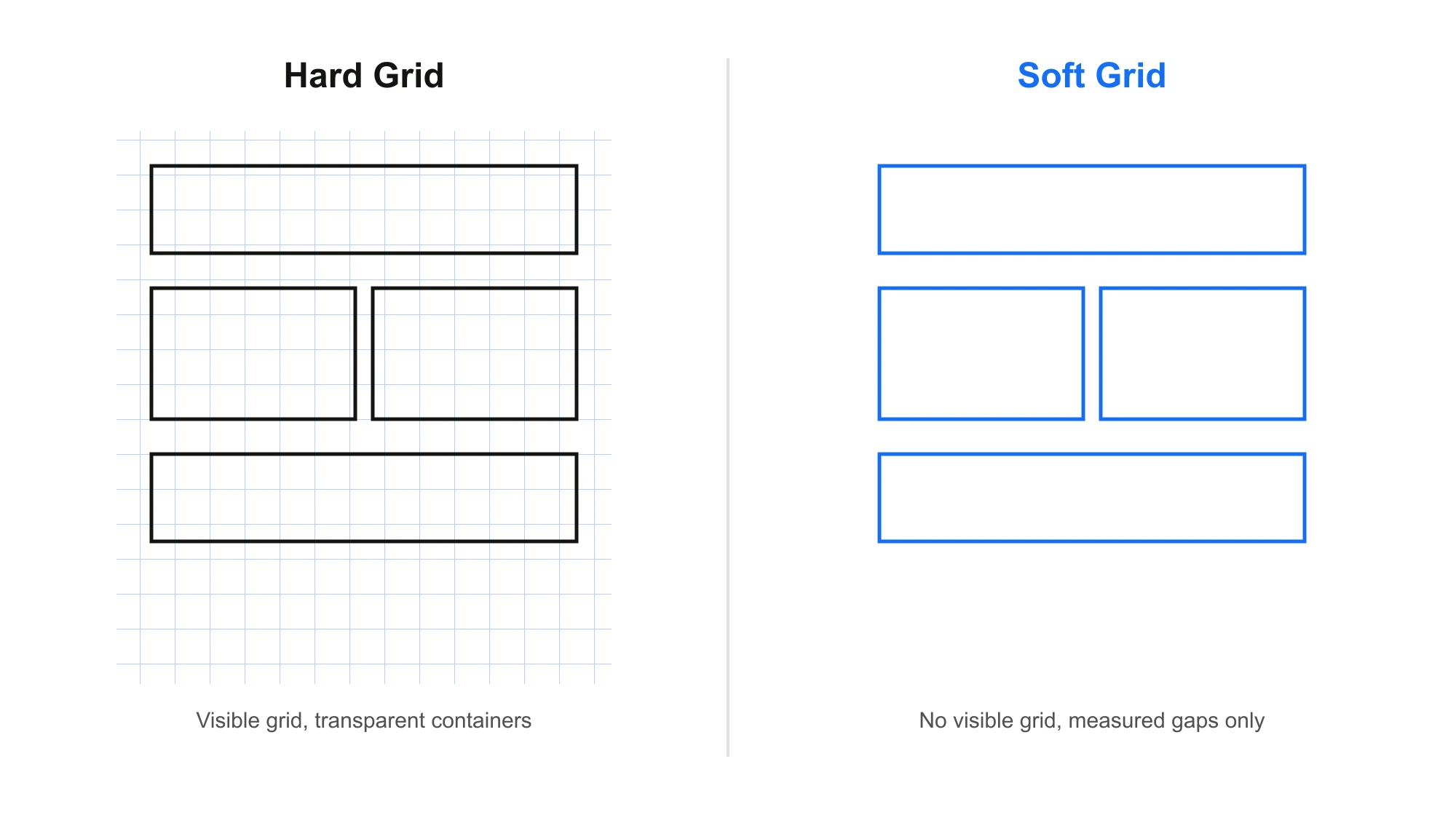

Hard Grid vs. Soft Grid

There are two common ways to actually implement this in a design tool. A Hard Grid overlays a visible 8px (or 4px) grid across the whole canvas, and every container snaps to it — useful early on, while the habit is still forming. A Soft Grid drops the visible overlay and simply measures the gap between elements in 8px increments — faster once the scale is second nature.

Measurable Impact

Where this system is applied consistently across spacing, type, and breakpoints together:

• design revisions decrease
• layout decisions happen faster, with fewer options to weigh
• CSS complexity drops
• visual consistency improves across every new page or section
• new breakpoints and components integrate without redesigning the base

The system reduces guesswork across the entire project lifecycle — not just at launch, but every time the site grows.

Why This Matters for Businesses

Clients don’t ask for an 8-point grid. They ask for professional design, a polished layout, and a website that scales without falling apart as it grows — and this system is what quietly delivers all three.

Most businesses don’t realize it, but the actual difference between an average website and a premium one is rarely more decoration. It’s structural discipline underneath.

Expert Insight — Design Is Engineering

The strongest approach treats design as a structured discipline, not an artistic guess. The strongest websites aren’t the most decorated — they’re the ones with the strongest internal systems, because spacing, type, and breakpoints influence every visual decision downstream: layout, components, responsiveness, and performance all get easier once the base scale is settled.

Key Insight

Most websites fail not because of poor design — but because they lack systems.

Further Resources

For anyone who wants to go deeper than this overview, these are real, well-documented references worth reading directly:

• Spec.fm — The 8-Point Grid: a concise, practical guide, including the Hard Grid vs. Soft Grid distinction referenced above.
• IBM Carbon Design System — 2x Grid: how a major enterprise design system documents its own 8px foundation.
• Shopify Polaris — Spacing: how Shopify implements the closely related 4px scale in a real production design system.
• Atlassian Design — Spacing: another real, production design system’s take on the same principle.
• Google Material Design 3: the design system behind Gmail, Drive, and Calendar, built around this scale from the ground up.

Final Takeaway

The 8-point grid isn’t a trend, and it isn’t just a spacing trick. It’s one small mathematical decision — multiples of 8 — applied consistently across spacing, typography, and breakpoints, that turns design from visual styling into scalable infrastructure.

Exceptional websites aren’t designed randomly. They’re engineered systematically, on one shared scale, from the first pixel to the last breakpoint.
